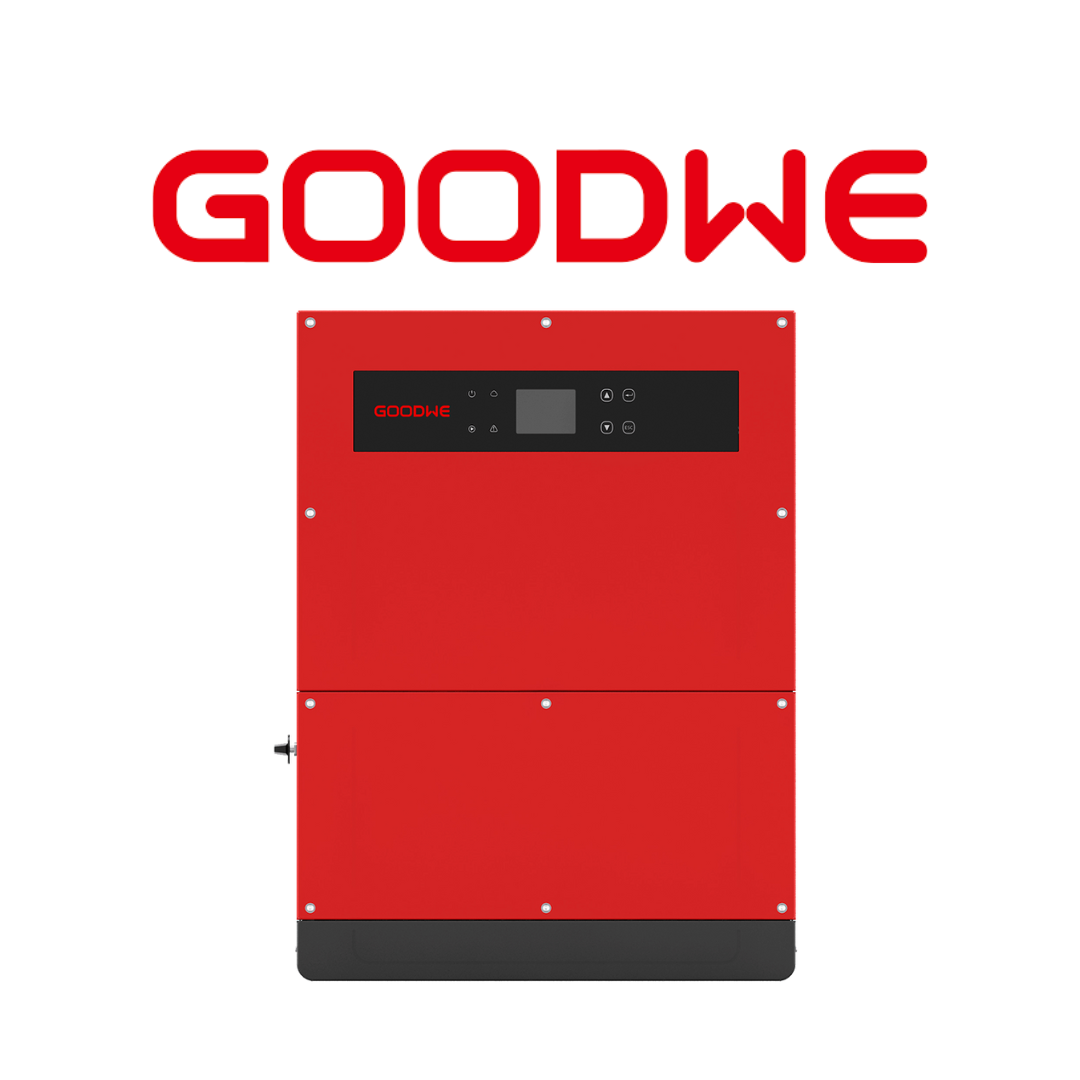

GoodWe GW80K-MT – Three-Phase String Inverter 80kW
Description:
The GoodWe GW80K-MT inverter is a high-performance solution for large commercial and industrial PV installations. With its high DC input capacity, wide MPPT voltage range, and up to 99.0% efficiency, this model is engineered to maximize solar energy harvesting and reduce the levelized cost of energy.
Featuring four independent MPPTs, it allows for optimized energy capture across different panel orientations or shading conditions. The inverter is built to operate reliably in extreme environments, with IP65 protection, a wide temperature range, and active fan cooling. Integrated safety features and monitoring systems ensure performance, protection, and ease of maintenance.
Key Features:
Nominal power output: 80,000 W
Up to 104,000 W maximum PV input power
4 MPPTs with 3 strings each (total 12 strings)
MPPT range: 200 V – 1000 V
Max. input voltage: 1100 V
Max. efficiency: 99.0%; European efficiency: 98.4%
AC surge and DC surge protection (Type II)
Integrated PV string current monitoring
IP65 rated for outdoor installations
Operating temperature range: –30°C to +60°C
Smart fan cooling system
Communication via RS485, WiFi, or PLC (optional)
Technical Specifications:
Max. PV Input Power: 104,000 W
Nominal Output Power: 80,000 W
Max. Output Power: 88,000 W
Max. Apparent Output Power: 88,000 VA
Nominal Voltage: 400 V (3L+N+PE)
Output Current (max): 94.1 A
Output Frequency: 50/60 Hz
Power Factor: ~1 (adjustable from 0.8 leading to 0.8 lagging)
Total Harmonic Distortion (THDi): <3%
Max. Input Current per MPPT: 44 A
Max. Short Circuit Current per MPPT: 55 A
Topology: Transformerless
Protection Degree: IP65
Cooling: Fan cooling
Night Self Consumption: <1 W
Dimensions: 586 × 788 × 267 mm
Weight: 65 kg
Display & Monitoring: LED, WiFi + APP
Communication: RS485, WiFi, or PLC (optional)
Altitude Limit: ≤ 4000 m
Certifications: IEC62109-1 & -2, VDE0126, EN50438, CEI 0-21, NRS097, IEC61727, VDE4105, and more
Applications:
Ideal for:
Large commercial and industrial rooftops
High-yield solar systems requiring string-level performance
Projects needing wide MPPT voltage range and high current input
Warranty: 5 Years (T's And C's Apply)
Lead Time: 1 – 3 Days
