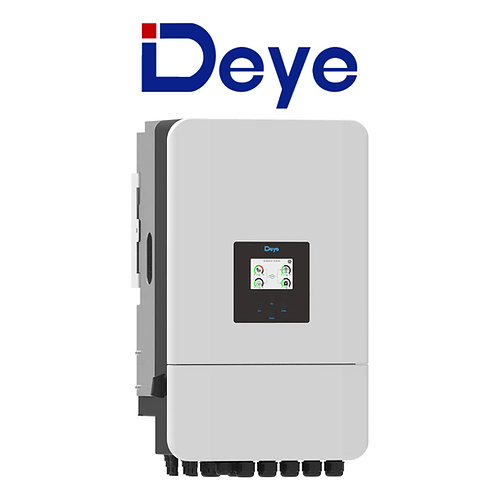

Deye 8kW Single Phase Hybrid Inverter – SUN-8K-SG05LP1-EU-SM2

Higher Yields:
Max. PV input power: 16,000W
DC/AC ratio up to 2:1 – ideal for bifacial PV modules
Dual MPPT design for optimal solar harvesting
Max. efficiency: 97.6%, MPPT efficiency: >99%

Smart & Versatile:
Retrofit compatible with AC-coupled systems
Max. 16 units can be paralleled for higher capacity
Supports both solar panels and wind turbines as DC input
6 programmable time periods for battery charge/discharge

User-Friendly:
Colorful touchscreen LCD
Compatible with lithium-ion and lead-acid batteries
Remote monitoring via mobile app or browser
Fan-cooled, with intelligent air cooling system

Reliable Protection:
Built-in protections: PV arc fault, anti-islanding, residual current, reverse polarity, and more
Surge protection: Type II (DC & AC)
IP65 rated – suitable for indoor and outdoor installations
Seamless switch between grid-tied and off-grid in 10ms
Zero-export function supported
Technical Specifications

AC Output:
Rated Output Power: 8000W
Max Output Power: 8800W
Peak Power (Off-Grid): 2× rated power for 10s
Max. AC pass-through: 50A
Grid Output Voltage: 230V (1P) | 120/240V (Split-phase) | 208V (2/3 Phase)
Frequency: 50/60Hz, THD <3%

Battery:
Type: Lead-acid / Lithium-ion
Voltage Range: 40–60V
Max Charge/Discharge Current: 190A
Charging Strategy: Self-adaptive to BMS

PV Input:
Max. PV Input Power: 16,000W
Max PV Voltage: 500V
MPPT Range: 150–425V
Start-up Voltage: 125V
No. of MPPTs: 2, Strings per MPPT: 2+2
Max PV Input Current: 40A (2 × 20A)

Certifications:
Grid: UL1741, IEEE1547, VDE4105, NRS 097, G99, and others
Safety: IEC/EN 62109-1 & -2
EMC: IEC/EN 61000-6-1/2/3/4

General Info:
Size: 589.5 × 366 × 237 mm
Weight: 26.8 kg
Noise: <30 dB
Communication: RS485, CAN, optional GPRS/WiFi/4G/LAN
Cooling: Intelligent air cooling
Operating Temp: -40°C to +60°C (derating >45°C)

Warranty:
10 Years (T’s & C’s Apply)

Lead Time:
1–3 Days
